Highlight:
250 deg Silicone Rubber Cushion Pads
, high temp resistant Silicone Rubber Cushion Pads
, high temp Hot Pressing Pads

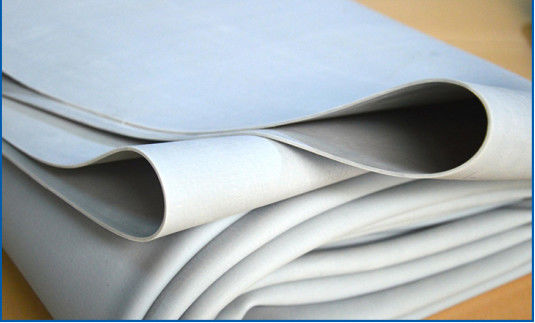

250 Deg High Temp Resistant Silicone Rubber Cushion Pads Hot Pressing Pads
1.5-2.5mm 80 N/mm Tensile Strength Silicone Rubber Cushion Pads For Wood Industry Hot Pressing Machine ESCP-Wood-G1
1.Introduction of 1.5-2.5mm 80 N/mm Tensile Strength Silicone Rubber Cushion Pads For Wood Industry Hot Pressing Machine ESCP-Wood-G1
Silicone Rubber Cushion Pads for Wood Industry Hot Pressing Machine ESCP-Wood-G1 is widely applied in the hot press or laminator used in the wood industry. The rubber cushion pads are widely used in the pressing production process of such products as Laminated wooden doors, reinforced flooring, particleboard, veneer panels, laminated furniture boards, medium density fiberboard (MDF)etc
The rubber cushion pads are the right cushion or buffering pads used in such hot pressing machines for wood industry.
|
Materila:
|
silicon rubber
|
|
Thickness
|
1.5-2.5mm.
|
|
High temperature resistance performance
|
≤250℃
|
|
Thickness tolerance
|
±0.3mm.
|
|
Size tolerance (length or width):
|
±2mm.
|
|
Tensile strength
|
≥ 80 N/mm
|
|
Adhesion
|
2.5N/mm
|
|
Hardness
|
55+/-5 (Shaw A)
|
|
Elongation at break
|
350%.
|
The silicon rubber cushion pad for wood industry is also known orre named as wood lamination cushion press pad, wood cushion mat, wooden door buffering pad or wood hot press pad. It is the necessary and important cushion and buffering materials to realize the high quality lamination process in wooden industry.
2. Product features of 1.5-2.5mm 80 N/mm Tensile Strength Silicone Rubber Cushion Pads For Wood Industry Hot Pressing Machine ESCP-Wood-G1
High temperature resistance
High elasticity
Strong resilience
Resistant to aging and corrosion
3. Product structures of 1.5-2.5mm 80 N/mm Tensile Strength Silicone Rubber Cushion Pads For Wood Industry Hot Pressing Machine ESCP-Wood-G1
Silicon rubber layer
Special Textile
Silicon rubber layer
4. Technical parameters of 1.5-2.5mm 80 N/mm Tensile Strength Silicone Rubber Cushion Pads For Wood Industry Hot Pressing Machine ESCP-Wood-G1
1). Thickness: 1.5-2.5mm.
2). High temperature resistance performance: ≤250℃
3). Thickness tolerance: ±0.3mm.
4). Size tolerance (length or width): ±2mm.
5). Tensile strength: ≥ 80 N/mm
6). Adhesion: 2.5N/mm
7). Hardness:55+/-5 (Shaw A)
8). Elongation at break:350%.
