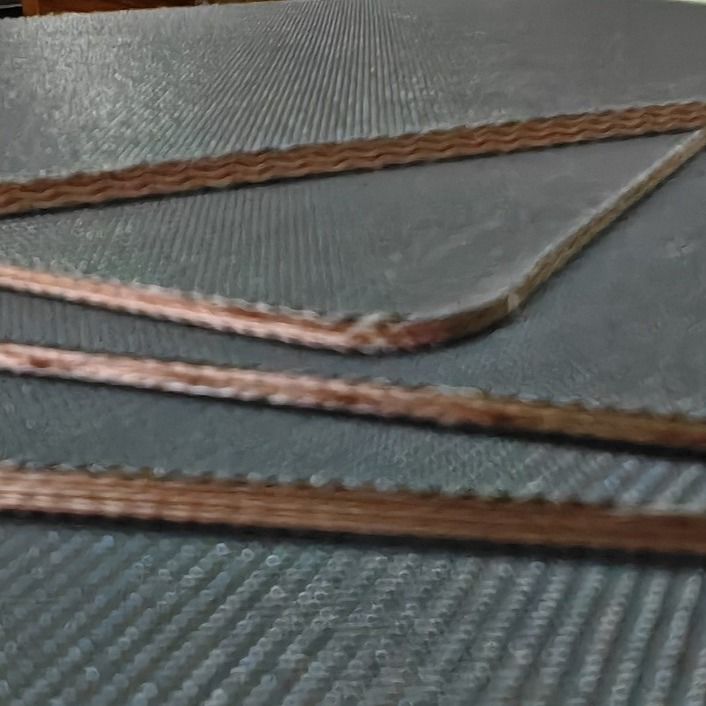

Rigid Multilayer PCB Press Cushion Pad Flexible Copper Clad Pcb Board

Product Description:

Rigid PCB cushion pad is specially designed for the purpose of hot lamination buffering during the process of Rigid PCB (rigid printed circuit board). It is of the red rigid cushion press pad which can work perfectly in replacing hot press kraft paper and can greatly improve dimensional safety and stability for rigid PCB (printed circuit board) production. It features outstanding lamination comprehensive performance and high stability, which can greatly improve the yield and efficiency in the process of rigid PCB (printed circuit board) production process.

There are two types of rigid PCB cushion pads defined as per their working postion. One is used at very top or very bottom of the total PCB lamination sheet package. We call it top PCB cushion pad or bottom PCB cushion pad. Another type is used as middle layer cushion pad which is usually thinner than top or bottom pad. The middle layer cushion pad is normally 1.5-2.0mm thick. And the thickness of top PCB cushion pad or bottom PCB cushion pad is in the range of 4.0mm-6.5mm.

The cushion pad (also named as press pad/cushion mat/buffering pad/hot press cushion) for PCB lamination purpose is very suitable for physical buffering operations in the middle layer and manual operations for multiple sheet replacements. It is also suitable for automated PCB laminating operations and can replace multiple sheets of hot press Kraft paper with one single pad which can greatly save the production material cost by at least 20%.

Features:

• Product Name:  PCB Press cushion pad for Rigid Multilayer and Flexible Printed Circuit Board manufacture
• Shape: Rectangular or customized
• Country Of Origin: China
• Durability: Long-lasting
• Electrical Insulation: High
• Color: Red, White, Grey Etc
• Keywords: PCB lamination press pad,cushion mat, buffering pad,hot press cushion

Technical Parameters:

Applications:

The Estar ESCP-FPC-G2 FPC cushion mat is a versatile product that can be used in a variety of occasions and scenarios due to its excellent attributes. Whether you are in the electronics industry, manufacturing sector, or any other field that requires PCB lamination processes, this PCB buffering pad is a great choice.

One of the key application occasions for the PCB cushion mat is during the lamination process of flexible printed circuit boards (FPCBs)  and Rigid PCB Cushion Pad . The cushion pad provides the necessary support and protection during the press lamination, ensuring a smooth and high-quality bonding of layers. Its high tear resistance and excellent tensile strength make it ideal for this demanding application.

In conclusion, the Estar ESCP-PCB-G2 cushion mat is a reliable and versatile product that can be applied in various occasions and scenarios, thanks to its high electrical insulation, good chemical resistance, excellent tear resistance, and strong tensile strength. Whether you are in need of FPCB buffering pads for lamination processes or other applications, this product from China is a top choice for your business.

Support and Services:

The PCB Press cushion pad product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of technical experts is available to assist with any inquiries or issues related to the product, including installation, troubleshooting, and maintenance.

Our support services also include regular product updates, training sessions, and on-site visits to address any specific needs or concerns. We are committed to delivering top-notch technical support to help our customers maximize the benefits of using the PCB Press cushion pad product.

Packing and Shipping:

Product Name: PCB Press Cushion Pad

Description: This cushion pad is designed to protect PCBs during transportation and storage.

Features:

• Soft or rigid and durable material
• Shock-absorbing properties
• Customizable size options

Package Includes:

• 1 x PCB Press Cushion Pad

Shipping Information:

• Shipping Method: Standard Shipping

FAQ:

Q: What is the brand name of the PCB Press cushion pad?

A: The brand name is Estar.

Q: What is the model number of the PCB Press cushion pad?

A: The model number is ESCP-PCB-G2.

Q: Where is the PCB Press cushion pad manufactured?

A: The PCB Press cushion pad is manufactured in China.

Q: What is the minimum order quantity for the PCB Press cushion pad?

A: The minimum order quantity is 20 pieces.

Q: What are the accepted payment terms for purchasing the PCB Press cushion pad?

A: The accepted payment terms are T/T, D/P, L/C, Western Union, and MoneyGram.
