Staineless Plate Industrial Wafer Ring Frame Round Dicing Ring SUS420J2

Japanese Industrial Standards wafer dicing Wafer Frame Ring with SUS420J2 staineless plate

Product Description:

Wafer frame ring ES-WFR-SUS420 is made of SUS420J2 high hardness stainless steel plate, which can ensure the right performance as wafer metal ring.

SUS420J2 is a martensitic stainless steel with excellent mechanical properties and corrosion resistance, widely used in industrial fields. Its chemical composition and physical properties endow it with good comprehensive performance, and the heat treatment process has a significant impact on its performance.

SUS420J2 is a material defined in the Japanese Industrial Standards (JIS) and belongs to the 420 series stainless steel. It has high hardness, strength, and wear resistance, and also has good corrosion resistance under certain conditions.

Wafer frame ring ES-WFR-SUS420 can provide safe support during the process of wafer or chip shipping and handling operations. Such wafer dicing ring is featuring extremely light weight and reliable shaping performance. We have many end users of wafer or chip producers globally around the world.

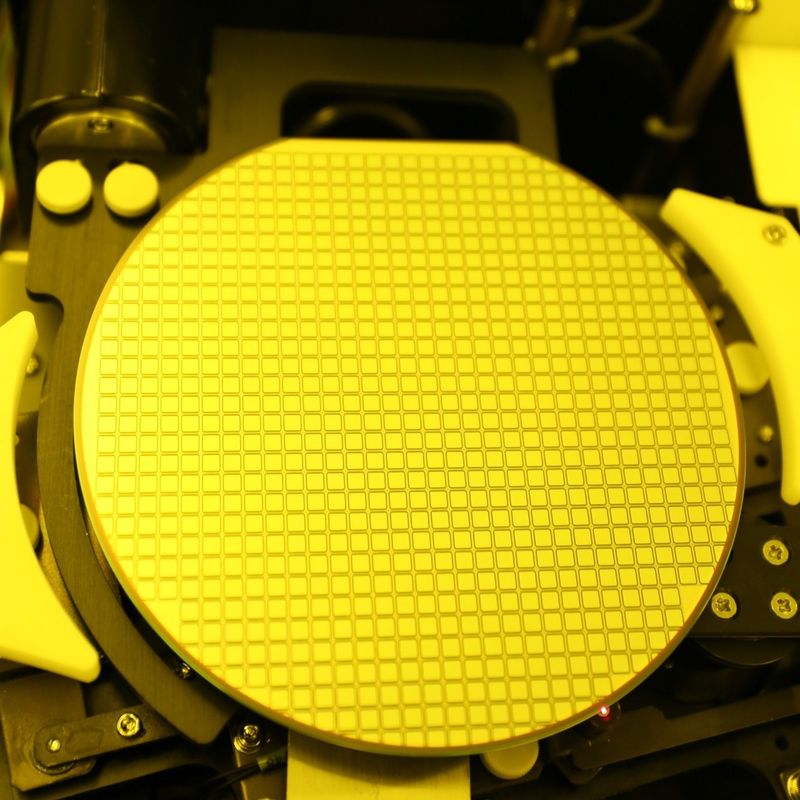

EASTAR^® Wafer frame ring ES-WFR-SUS420 (also named as Wafer Dicing Ring/Wafer Metal Frame/Wafer Metal Ring/Wafer Ring Frame/Wafer Frame Ring) is working as a circular or special shape metal ring used to protect the edges of wafers and chips, mainly used in the laser marking process of wafers to provide protection and position limit. The wafer frame ring can withstand the high temperature and energy during the UV laser marking process to prevent chip damage and edge fragmentation.

Such product is also known or named as wafer frame, wafer mounting ring, wafer loading ring,wafer dicing ring, wafer metal ring, wafer ring frame or wafer frame ring.

One of the key attributes of the Wafer frame ring is its durability. Constructed with high-quality materials, this product is highly durable and resistant to corrosion. It is built to withstand the demanding conditions of wafer processing environments, ensuring long-lasting performance and reliability.

Features:

• Product Name: Wafer frame ring  ES-WFR-SUS420
• Usage: Holding And Protecting Wafers During Processing
• Function: Securely Holds Wafers In Place During Processing
• Ring Shape: Inner circular shape, Inner square shape and special customized shapes
• Brand Name: EastStar
• Compatibility: Fits Most Standard Wafer Sizes

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the EastStar Wafer frame ring (Model ES-WFR-SUS420) are diverse and cater to various industries and settings. The versatile nature of this product makes it suitable for a wide range of uses, ensuring its relevance across different sectors.
One primary application scenario for the EastStar Wafer frame ring is in semiconductor manufacturing facilities. The product is specifically designed for holding and protecting silicon wafers during processing. Its precise Angle Tolerance of 0° 30″ and Size Tolerance of +/-0.5mm ensure accurate and secure placement of the wafers, making it an essential tool in the production of semiconductor devices.
Due to its lightweight construction and easy handling, the EastStar Wafer frame ring is ideal for both small-scale research projects and large-scale industrial production. Its Size range of 6 inches to 12 inches caters to different wafer sizes commonly used in the industry, offering flexibility and adaptability.

Support and Services:

The Wafer frame ring product comes with comprehensive product technical support and services to ensure smooth functioning and optimal performance. Our dedicated technical support team is available to assist with any product-related queries, troubleshooting, and technical issues that may arise. In addition, we offer maintenance services to keep the product in top condition and extend its lifespan.

Packing and Shipping:

Product: Wafer Frame Ring
Description: The Wafer Frame Ring is a durable and stylish accessory designed to complement your outfit.
Materials: Made from high-quality stainless steel with a sleek silver finish.
Shipping Information:
- All orders are processed within 15-20business days.
- Shipping times may vary depending on your location.
- We offer standard and expedited shipping options.
- Shipping cost will be calculated at checkout.

FAQ:

Q: What is the brand name of the Wafer frame ring product?
A: The brand name of the Wafer frame ring product is EastStar.
Q: What is the model number of the Wafer frame ring product?
A: The model number of the Wafer frame ring product is  ES-WFR-SUS420.
Q: Where is the Wafer frame ring product manufactured?
A: The Wafer frame ring product is manufactured in China.
Q: What is the minimum order quantity for the Wafer frame ring product?
A: The minimum order quantity for the Wafer frame ring product is 10-20pcs.
Q: What are the available payment terms for purchasing the Wafer frame ring product?
A: The available payment terms for purchasing the Wafer frame ring product are D/A, D/P, MoneyGram, Western Union, and T/T.
Q: What is the delivery time for the Wafer frame ring product?
A: The delivery time for the Wafer frame ring product is 10-20 days.
Q: What are the packaging details for the Wafer frame ring product?
A: The Wafer frame ring product is packaged in strong plywood packages with proper soft protection material inside, suitable for long-distance sea or air transport.
Q: What is the supply ability for the Wafer frame ring product?
A: The supply ability for the Wafer frame ring product is 10000 Square Meters per week.
