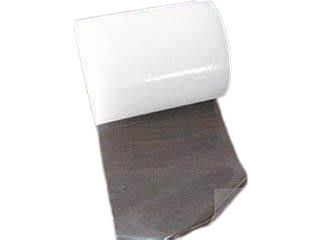

200m Polyester Release Laminating Film Roll FPC Lamination Self Adhesive Laminate Roll

Name: 200m Polyester Release Laminating Film Roll FPC Lamination Self Adhesive Laminate Roll
Brand: Eaststar New Material (Tianjin) Limited
SKU: ESRF1-25
Price: negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: ES

Model Number: ESRF1-25

Payment & Shipping Terms

Minimum Order Quantity: 200pcs

Price: negotiable

Packaging Details: export carton

Delivery Time: around 5-7days after receiving prepayment

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 200pcs per day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                200m Laminating Film Roll, Polyester Laminating Film Roll, FPC self adhesive laminate roll


Features:	Anti-scratch, Anti-static, Anti-fog	Material:	Polyester
Length:	200m	Application:	Lamination Of Printed Materials
Tear Resistance:	High	Adhesive Type:	Acrylic
Width:	1000mm	Uv Resistance:	Yes
Adhesion Strength:	High	Temperature Resistance:	Up To 150°C
Transparency:	Clear	Surface Finish:	Glossy
Thickness:	0.5mm	Water Resistance:	Yes

Features:	Anti-scratch, Anti-static, Anti-fog
Material:	Polyester
Length:	200m
Application:	Lamination Of Printed Materials
Tear Resistance:	High
Adhesive Type:	Acrylic
Width:	1000mm
Uv Resistance:	Yes
Adhesion Strength:	High
Temperature Resistance:	Up To 150°C
Transparency:	Clear
Surface Finish:	Glossy
Thickness:	0.5mm
Water Resistance:	Yes

200m Polyester Release Laminating Film Roll FPC Lamination Self Adhesive Laminate Roll

Release Film Special for Flexible Printed Circuit Board (FPC) Lamination

Release film for FPC lamination

Release film special for flexible printed circuit board (FPC) lamination is a special purpose thin film specially used in the process of flexible printed circuit board (FPC).

Release film special for flexible printed circuit board (FPC) lamination is also known or renamed as FPC release film, F-PCB lamination release film or functional release film used for FPC lamination.

Product Application:

FPC release film is working as the covering film used for the process of FPC or F-PCB lamination. During FPC lamination process, it is playing a functional role of isolation and separation. It is also used for false bonding and compression of EML and FR4.

Product Structure:

Release layer
High-temperature resistant PET substrate
Release layer

Product Features:

1. It has double matte surfaces which can make the production operation easier.

2. The static electricity on the surface of the release film is small, which will not adsorb dust or other foreign objects that may cause defects.

3. The FPC release film has lower silicone oil transfer, which can minimize the pollution risk.

FPC Release film models:

Model	Thickness	Release force	Surface finish
ESRF1-25	25um	10-35gf/inch	Matte glossy
ESRF1-36	36um
ESRF1-50	50um
ESRF1-75	75um
ESRF1-100	100um
