Excellent Thermal Conductivity CCL Lamination Steel Plate Ultimate Solution for Advanced Electronic Components
Product Description:
Copper Clad Laminate CCL Lamination Steel Plate ESSP-CCL-400 is of our mature and reliable high-precision lamination steel plate special for CCL copper clad laminate lamination purpose.
We have been deeply involved in the CCL laminating auxiliary material industry for many years. We have been specializing in providing high-precision laminated steel plates and partition steel plate series, fully meeting the strict laminating requirements of large-sized CCL copper clad laminate. We mainly act as an agent for high-end lamination steel plates produced by Japan, including NAS630&NAS301 (high expansion coefficient) precipitation hardening steel plates. The quality lamination steel plates have won the trust and satisfaction of CCL/PCB industry customers with its ultra-high hardness, optimized surface roughness, and excellent thermal conductivity.
The CCL lamination steel plate is a high-quality product designed for various industrial applications, offering exceptional performance and durability. This product is commonly used as a CCL steel lamination panel, copper steel plate, or in Japanese laminated steel applications.
One of the key features of this product is its availability in multiple conventional sizes to suit different project requirements. The sizes include 2220 * 1270, 2210 * 1270, 1910 * 1270, 1500 * 1295, 1300 * 800, 1295 * 787, 1295 * 1613, 1295 * 1143, and 1295 * 787. This range of sizes ensures flexibility and compatibility with various industrial processes and specifications.
When it comes to precision and quality control, the CCL lamination steel plate boasts a tight thickness tolerance of ±0.05mm. This level of accuracy is crucial for ensuring the consistency and reliability of the product in demanding applications.
Product Features:
1. Copper Clad Laminate CCL Lamination Steel Plate is using the highest end steel plate raw materials (made in Japan). The most advanced heat treatment technology and the latest grinding manufacturing process can well ensure that each lamination steel plate has reliable lamination performance in the process of CCL lamination.
2. It features the minimum high-temperature warpage degree with longer service life.
3. It has better thermal conductivity and thermal expansion coefficient.
4. High corrosion resistance and hardness.

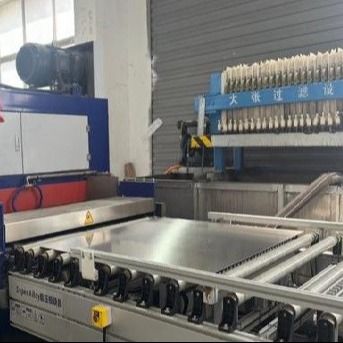

5. Suitable for various types of lamination steel plate washing machines.
6.Other parameters as below
- Parallelism: ≤0.03
- Warpage Degree: ≤3mm/M
- Diagonal Deviation: 1mm
- Service Life: 8-10 Years
Technical Parameters:
1. Steel material: Japanese metallurgical NAS630 and NAS301 (NAS630 is chosen or used more).
2. Conventional thickness (mm): 1.5, 1.6, 1.8, 2.0
2. Service life: 8-10 years (Note: after repeated usage, the steel plate will become thinner. It is not recommended to continue using after the thickness is less than 1.3mm/the steel plate thickness between 1.3-1.6mm should ensure no deformation or warping, and the hardness meets the standard).
3. Conventional size of CCL lamination steel plate (L * W in mm):
2220 * 1270/2210 * 1270/1910 * 1270/1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787
Steel Plate Performance Parameters:
|
Models
Items
|
NAS630 JAPAN |
NAS301 JAPAN |
| Mass-Lam plate |
Pin-lam plate |
Mass-Lam plate |
Pin-lam plate |
| Thickness |
1.0-2.5mm |
1.0-2.5mm |
1.0-1.8mm |
1.0-1.8mm |
| Width |
≤1300 |
≤1300 |
≤1060 |
≤1060 |
| Length |
≤2410 |
≤2410 |
≤3150 |
≤3150 |
| Thickness tolerance |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
| Surface roughness (um) |
Ra≤0.15
Rz≤1.5
|
Ra≤0.15
Rz≤1.5
|
Ra≤0.15
Rz≤1.5
|
Ra≤0.15
Rz≤1.5
|
| Positioning hole to hole tolerance |
-- |
+0.1/-0mm |
-- |
+0.1/-0mm |
| Standard bushing slot tolerance |
-- |
+0.05/-0mm |
-- |
+0.05/-0mm |
| Warpage degree |
≤3mm/M |
≤3mm/M |
≤3mm/M |
≤3mm/M |
| L/W size tolerance |
±1mm |
±1mm |
±1mm |
±1mm |
| Yield strength |
≥1175 N/mm2 |
≥1175 N/mm2 |
≥1175 N/mm2 |
≥1175 N/mm2 |
| Tensile strength |
≥1400 N/mm2 |
≥1400 N/mm2 |
≥520 N/mm2 |
≥520 N/mm2 |
| Extensibility |
≥5% |
≥5% |
≥5% |
≥5% |
| Hardness HRC |
50HRC±2 |
50HRC±2 |
44HRC±2 |
44HRC±2 |
| Work temperature |
≤400℃ |
≤400℃ |
≤400℃ |
≤400℃ |
| Parallelism |
≤0.03 |
≤0.03 |
≤0.03 |
≤0.03 |
| Diagonal deviation |
1mm |
1mm |
1mm |
1mm |
| Thermal conductivity |
≥25W/MK at 300℃ |
≥25W/MK at 300℃ |
≥18W/MK at 300℃ |
≥18W/MK at 300℃ |
| Average thermal expansion coefficient (10-6/℃) |
10~12 |
10~12 |
15~17 |
15~17 |
Applications:
With a minimum order quantity of 100pcs and a negotiable price based on the order quantity, the ESSP-CCL-400 is a cost-effective solution for businesses looking for reliable CCL steel lamination plates. Accepted payment terms include T/T, D/P, D/A, MoneyGram, and Western Union, providing flexibility to customers.
The delivery time for this product is 10-20 days after receiving the prepayment, ensuring a quick turnaround for orders. The packaging details include a strong plywood package with proper soft protection material inside, making it suitable for long-distance sea or air transport.
With a supply ability of 10000 sheets per week, the ESSP-CCL-400 is readily available to meet the demands of various projects. The thickness options of 1.5mm, 1.6mm, 1.8mm, and 2.0mm, with a thickness tolerance of ±0.05mm, cater to different requirements.
The average thermal expansion coefficient of 10~12 x 10-6/℃ ensures stability in temperature variations, making it ideal for applications where thermal considerations are crucial. The tensile strength of ≥1400 N/mm2 guarantees durability and reliability in use.
What is the definition of copper clad laminate (CCL)?
Copper clad laminate (CCL) is a plate-shaped material made by immersing electronic fiberglass cloth or other reinforcing materials in resin, covering one or both sides with copper foil, and then hot pressing, abbreviated as CCL. Various forms and functions of printed circuit boards are selectively processed, etched, drilled, and copper plated on copper clad laminates to produce different printed circuits. The main functions of printed circuit boards are interconnection, insulation, and support, which have a significant impact on the transmission speed, energy loss, and characteristic impedance of signals in circuits. Therefore, the performance, quality, processability, manufacturing level, manufacturing cost, and long-term reliability and stability of printed circuit boards largely depend on copper clad laminates.
Packing and Shipping:
Product Name: CCL Lamination Steel Plate
Description: Our CCL lamination steel plate is a high-quality product designed for use in various electronic applications.
Features:
- Durable steel construction
- Provides excellent conductivity
- Suitable for use in electronics manufacturing
Packaging: Each CCL lamination steel plate is carefully packaged to prevent damage during transportation. The product is wrapped in protective material and placed in a sturdy cardboard box.
Shipping: We offer fast and reliable shipping options to ensure that your CCL lamination steel plates are delivered to you in a timely manner. Shipping costs may vary depending on your location and the quantity of plates ordered.
FAQ:
Q: What is the brand name of the lamination steel plate product?
A: The brand name is EastStar.
Q: What is the model number of the lamination steel plate product?
A: The model number is ESSP-CCL-400.
Q: Where is the lamination steel plate product manufactured?
A: The product is manufactured in China.
Q: What is the minimum order quantity for the lamination steel plate product?
A: The minimum order quantity is 100pcs.
Q: How are the prices determined for the lamination steel plate product?
A: Prices are negotiable based on the order quantity.
