2220x1270mm Lamination Press Rubber Pad Customized Size Copper Clad Laminate Sheet

Buffer Standard: ≥ 12% Size 2220*1270mm Or Customized Copper Clad Lamination Press Rubber Pad ESCP-CCL-G1

Product Description of Buffer Standard: ≥ 12% Size 2220*1270mm Or Customized Copper Clad Lamination Press Rubber Pad ESCP-CCL-G1:

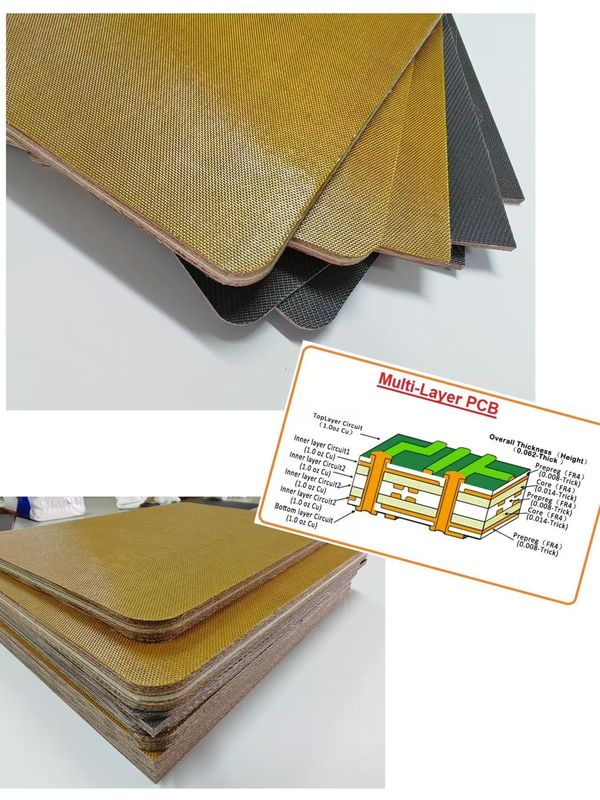

CCL cushion pad is the red rigid cushion pad which can well replace hot press kraft paper and improve dimensional safety and stability (industry standard tolerance:+/-300ppm/it can reach+/-250ppm after using such CCL cushion pad). It has excellent lamination comprehensive performance and high stability, which can greatly improve the yield and efficiency in the process of CCL (copper clad laminate) production process.

CCL cushion pad is also named or known as CCL lamination cushion pad, CCL cushion mat, CCL buffering pad or CCL hot press cushion pad. It is the necessary and important cushion and buffering materials to finish the CCL (copper clad laminate) lamination process.

Whether you are working with delicate materials that require gentle handling or heavy-duty applications that demand robust support, this rubber pad offers the versatility and reliability needed to achieve optimal lamination outcomes.

In conclusion, the Lamination Press Rubber Pad is a valuable addition to any lamination setup, offering exceptional temperature resistance, long-lasting durability, and the flexibility to meet diverse lamination requirements. With its reliable performance and quality construction, this rubber pad is a must-have for industries seeking efficient and effective lamination solutions.

Features of Buffer Standard: ≥ 12% Size 2220*1270mm Or Customized Copper Clad Lamination Press Rubber Pad ESCP-CCL-G1:

The product advantages of CCL cushion pad (lamination press pad/cushion mat/buffering pad/hot press cushion for CCL (copper clad laminate) lamination purpose) are summarized as below:

1. It can be repeatedly pressed for 600-800 times, which can significantly reduce the production cost of CCL (copper clad laminate).

2.It performs well in terms of cushion pad flatness, wear resistance, size increase ratio, thickness variation, which is far superior to hot press kraft paper in the process of CCL lamination.

3. It features better performance in high temperature resistance, able to work for a long time at no more than 280℃ without carbonization or brittleness.

4. It features excellent buffering effect and thermal conductivity, stable compression increase and expansion coefficient, and good tear resistance.

5. It is flame retardant, non-toxic and odorless, dust-free and shavings free with good breathability.

6. We can give you the shorter delivery time with more competitive prices and quality control.

Technical Parameters of Buffer Standard: ≥ 12% Size 2220*1270mm Or Customized Copper Clad Lamination Press Rubber Pad ESCP-CCL-G1

1. Service life: 600-800 times.

2. High temperature resistance performance: ≤280℃

3. Thickness: 4mm-6.5mm.

4. Thickness tolerance: ±0.3mm.

5. Normal regular Sizes (L*W in mm): 2220*1270/2120*1270/1920*1270/1905*1270/1270*1070/1270*1120/1270*800

6. Size tolerance (length or width): ±2mm.

7. Tensile strength ≥ 25 MPa

8. Buffer standard: ≥ 12%

9. Water absorption standard :< 8% (3-8%)

Applications of Buffer Standard: ≥ 12% Size 2220*1270mm Or Customized Copper Clad Lamination Press Rubber Pad ESCP-CCL-G1:

EastStar Lamination Press Rubber Pad (Model: ESCP-CCL-G1) is a versatile product suitable for a variety of product application occasions and scenarios due to its high tear resistance, high abrasion resistance, and durable properties.

CCL cushion pad (press pad/cushion mat/buffering pad/hot press cushion) for CCL (copper clad laminate) lamination purpose is suitable for physical buffering operations in the middle layer and manual operations for multiple sheet replacements. It is also suitable for automated CCL laminating operations and can replace multiple sheets of hot press kraft paper with one single pad.

For payment terms, T/T is accepted, offering a convenient and secure transaction method for ordering the CCL cushion pad from EastStar.
