1 - 2.5mm Printed Circuit Board Laminate Plate Mass Lam Pin Lam Plate

High-Performance PCB Lamination Steel Plate 1.0-2.5mm Thick Mass-Lam and Pin-Lam Plate

Product Description:

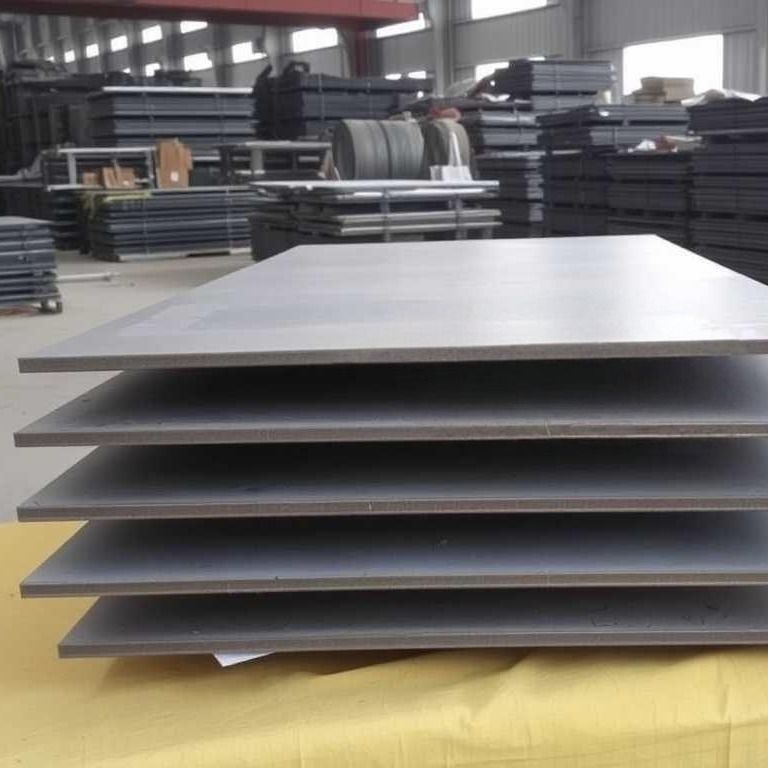

Printed Circuit Board (PCB) Lamination Steel Plate ESSP-PCB-400 has been working reliably in the PCB laminator as our mature and reliable high-precision lamination steel plate special for PCB lamination purpose.

Printed circuit board is an important component in the electronics industry, mainly used for electrical connections of electronic components. PCB forms electrical connections between electronic components by patterning conductive copper foil on the surface of insulating materials. Its main function is to provide mechanical support and electrical connections, widely used in various electronic devices. ‌

EastStar has been deeply involved in the PCB/CCL laminating auxiliary material industry for many years. We have been specializing in providing high-precision laminated steel plates and partition steel plate series, fully meeting the strict laminating requirements of PCB. We are mainly working as an agent for high-end lamination steel plates produced by Japan, including NAS630&NAS301 (high expansion coefficient) precipitation hardening steel plates. The quality lamination steel plates have won the trust and satisfaction of CCL/PCB industry customers with its ultra-high hardness, optimized surface roughness, and excellent thermal conductivity.

The PCB laminated steel board is a crucial component in the production of electronics circuit boards. It serves as the press plate for copper clad laminates (CCL) during the lamination process, ensuring precise bonding and uniformity in the circuit board construction.

The normal sizes of the CCL lamination steel plate/press plate are available in dimensions of  1500*1295 /1300*800/1295*787/1295*1613/ 1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28".mm, providing flexibility for various PCB manufacturing requirements.

Furthermore, the PCB laminated steel board offers high corrosion resistance and hardness, ensuring long-term durability and reliability in electronic applications. This quality makes it a reliable choice for circuit board bonding steel panels, providing stability and protection against environmental factors.

Key Features:

1. Printed Circuit Board PCB Lamination Steel Plate has been using the highest-end steel plate raw materials (made in Japan). We have applied the most advanced heat treatment technology and the latest grinding manufacturing process in the plate production, which can well ensure that each lamination steel plate has reliable lamination performance in the process of CCL lamination.

2. such lamination steel plate features the minimum high-temperature warpage degree with longer service life.

3. It has better thermal conductivity and thermal expansion coefficient.

4. High corrosion resistance and hardness.

5. Suitable for various types of lamination steel plate washing machines.

Technical Parameters:

1. Steel material: Japanese NAS630 and NAS301 (NAS630 is mostly chosen or used).

2. Conventional thickness (mm): 1.6, 1.5, 1.8, 2.0.

2. Service life: 8-10 years (Note: after repeated usage, the steel plate will become thinner. It is not recommended to continue using it after the plate thickness is lowered to less than 1.3mm/the steel plate thickness between 1.3-1.6mm should ensure no deformation or warping, and the surface hardness can meet the standard specification).

3. Conventional dimensions of PCB lamination steel plate (L * W in mm): 1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28".

Applications:

EastStar PCB lamination steel plate (Model: ESSP-PCB-400) is a high-quality product originating from China, designed for various applications in the electronics industry. With a minimum order quantity of 100pcs, the price of this product is negotiable, making it suitable for both small and large-scale projects.

The product is packaged securely in strong plywood with proper soft protection materials, ensuring safe transportation for long distances via sea or air. EastStar guarantees a supply ability of 10000 sheets per week, ensuring a consistent availability of the product for customers.

It is suitable for various types of lamination steel plate washing machines, making it a versatile choice for different industrial settings.

The surface roughness is maintained at Ra≤0.15 and Rz≤1.5, providing a smooth and consistent finish for circuit board bonding.

In summary, EastStar's PCB lamination steel plate is a reliable and versatile product suitable for applications such as circuit board bonding, printed wiring board lamination, and PCB laminated steel board. With flexible payment terms including D/A, T/T, D/P, Western Union, and MoneyGram, customers can easily procure this essential component for their electronic manufacturing needs.

Support and Services:

Product Technical Support and Services:

Our PCB lamination steel plate product comes with comprehensive technical support and services to ensure smooth integration and operation. Our team of experts is available to provide assistance with installation, troubleshooting, and optimization of the product to meet your specific requirements. We also offer training sessions and resources to help you maximize the performance and longevity of the PCB lamination steel plate.

FYI, PCB lamination steel plate is also named or called as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB mirror steel plates or PCB pressing steel plate.

Our high-precision lamination steel plates special for PCB production are very popular among many PCB producers worldwide. They have been widely used in various PCB laminators like BURKLE, LAUFFER, CEDAL, HELD, DATIAN, WEIDI, DIPUER, etc.
