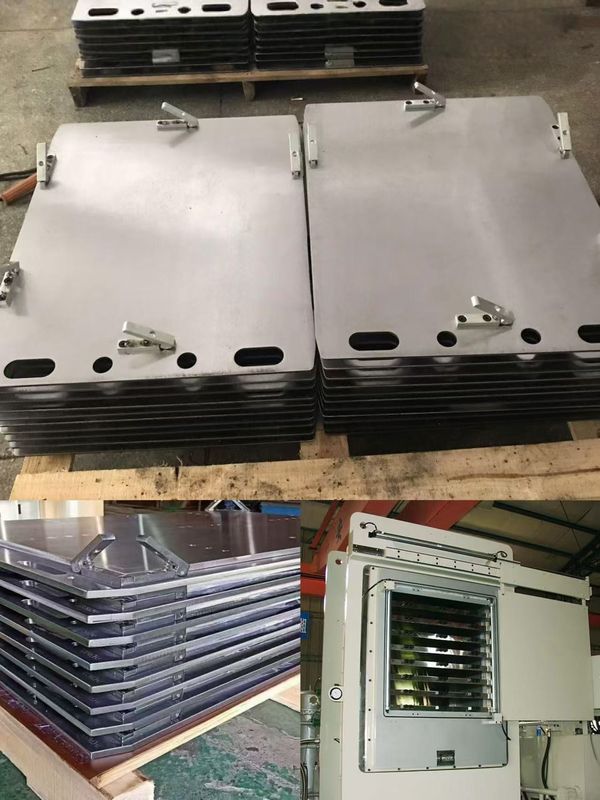

2.0mm - 15.0mm Thick PCB CCL Lamination Carrying Tray And Cover Plate
2.0mm-15.0mm thick PCB CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam
1. Introduction of 2.0mm-15.0mm thick PCB CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam
PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam is made of the top grading steel which can fully meet the higher and stricter requirements for PCB or CCL lamination process.
As a professional manufacturer specializing in the deep processing of laminated steel plates and carrying trays (carrier plates) used in such industries as PCB, CCL and IC carrier boards, EastStar has been using high-end raw materials (made in Japan, Sweden or Germany) and precision machining technology (using the latest heat treatment and grinding techniques), combined with sophisticated automation equipment and strict quality inspection processes.
We can also rename or call PCB/CCL Lamination Carrying Tray as PCB/CCL loading tray, PCB trailer plate, CCL steel carrier tray, PCB lamination carrying plate or CCL lamination steel carrier plate.
| Performance Parameters |
AISI 4140H/AISI 6150H/Dura 420 |
| Mass Lamination purpose |
| Thickness |
2.0mm-15.0mm |
| Thickness tolerance |
+/-0.2mm |
| Length |
≤3000mm |
| Width |
≤1300mm |
| Size tolerance |
+/-1.0mm |
| Hardness HRC |
40-50 |
| Warpage degree |
≤3mm/m |
| Working temperature |
≤400℃ |
| Parallelism |
≤0.10 for 2000mm long size |
| Surface roughness/treatment |
Grit 80/Ra≤1.2-2.5um |
| Positioning hole-to-hole tolerance |
-- |
| Thermal conductivity W/(m*k) |
42 for AISI models or 25 for Dura type |
| Thermal expansion 10-6/℃. |
11-12/ 20-300 ℃. |
2. Product features of 2.0mm-15.0mm thick PCB CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam
1).All PCB/CCL lamination carrier plates are featuring smaller dimensional tolerances and higher machining precision.
2). It has longer service life, which can reach 4-5 years.
3).Conventional sizes (mm) of the carrier tray and cover plate for PCB/CCL lamination: 1472*1320/1300*800/1420*850/1295*1500/2220*1270/2120*1270/1920*1270/1270*1070/1270*1120/1295*1143.
3. Performance parameters of 2.0mm-15.0mm thick PCB CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam
Each set of bearing plates is made of fully hardened steel plate, which is a heat-resistant and wear-resistant steel plate with high strength, high hardness, and high homogeneity. After years of testing and research, it is specially provided by Saint Company as a special steel plate for hot press machines in electronic factories (CCL, PCB). The working temperature of CCL and PCB hot press machines is generally between 180 ℃ and 230 ℃, while the tempering temperature of ordinary steel plates before leaving the factory is roughly set below 150 ℃. The bearing plate made of ordinary steel will release new thermal stress in the high-temperature and high-pressure environment of the hot press machine, causing deformation and bending of the steel plate, which will affect production.
4. Application of 2.0mm-15.0mm thick PCB CCL Lamination Carrying Tray and Cover Plate ESCT-Masslam
The PCB/CCL laminating special carrier tray and top cover plate are using high-end steel, and we deeply know that the stable laminating performance of such product can only be ensured by both selecting high-end raw material steel and using the most advanced processing technology. Our bottom carrier tray and top cover plate can fully meet all the pressing or lamination production needs of the existing PCB and CCL industries.
