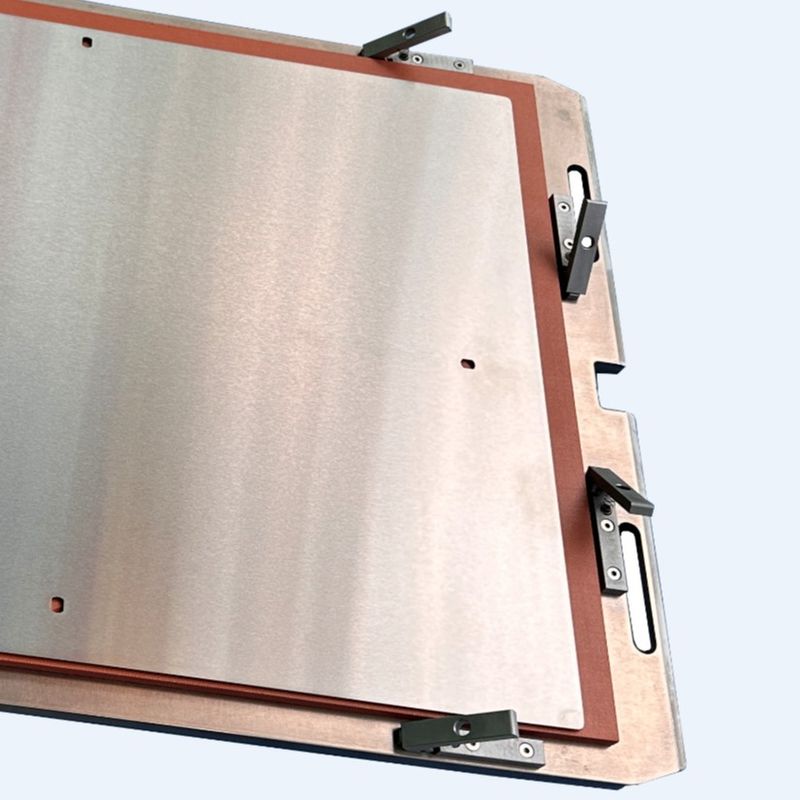

Pinlam Carrier Plate PCB/CCL Lamination Carrying Tray And Cover Plate
7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
1.Introduction of 7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam is specially used for the pinlam process of PCB or CCL lamination purpose.
The Pinlam carrier plate uses pin pins for positioning, ensuring that each layer is not easily slipped during the pressing process and has high alignment accuracy.
All our bearing plates or carrying trays are made of fully hardened steel plate, which is a heat-resistant and wear-resistant steel plate with high strength, high hardness, and high homogeneity. After years of testing and research, our company specializes in providing steel plates for hot press machines in electronic factories (CCL or PCB).
is made of the top grading steel which can fully meet the higher and stricter requirements for PCB or CCL lamination process.
performance parameters of 7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
|
Performance Parameters
|
AISI 4140H
|
|
Pin Lamination purpose
|
|
Thickness
|
7.0mm/10.0mm
|
|
Thickness tolerance
|
+/-0.1mm
|
|
Length
|
≤3000mm
|
|
Width
|
≤1300mm
|
|
Size tolerance
|
+/-1.0mm
|
|
Hardness HRC
|
40+/-2
|
|
Warpage degree
|
≤0.5mm/m
|
|
Working temperature
|
≤400℃
|
|
Parallelism
|
≤0.05
|
|
Surface roughness/treatment
|
Grit 80/Ra≤1.2um
|
|
Positioning hole-to-hole tolerance
|
+/-0.012
|
|
Thermal conductivity W/(m*k)
|
42
|
|
Thermal expansion 10-6/℃.
|
12.9 / 20-300 ℃.
|
2. Product features of 7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
1).All PCB/CCL lamination carrier plates are featuring smaller dimensional tolerances and higher machining precision.
2). It has longer service life, which can reach 4-5 years.
3).Conventional sizes (mm) of the carrier tray and cover plate for PCB/CCL lamination: 1472*1320/1300*800/1420*850/1295*1500/2220*1270/2120*1270/1920*1270/1270*1070/1270*1120/1295*1143.
3. Technical parameters of 7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
|
Technical parameters of PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam AISI 4140H Pin Lamination purpose
|
|
Thickness
|
7.0mm/10.0mm
|
Working temperature
|
≤400℃
|
|
Thickness tolerance
|
+/-0.1mm
|
Parallelism
|
≤0.05
|
|
Length
|
≤3000mm
|
Surface roughness/treatment
|
Grit 80/Ra≤1.2um
|
|
Width
|
≤1300mm
|
Positioning hole-to-hole tolerance
|
+/-0.012
|
|
Size tolerance
|
+/-1.0mm
|
Thermal conductivity W/(m*k)
|
42
|
|
Hardness HRC
|
40+/-2
|
Thermal expansion 10-6/℃.
|
12.9 / 20-300 ℃.
|
|
Warpage degree
|
≤0.5mm/m
|
|
|
4. Application of 7.0mm or 10.0mm Pinlam carrier plate PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam
We can also rename or call PCB/CCL Lamination Carrying Tray as PCB/CCL loading tray, PCB trailer plate, CCL steel carrier tray, PCB lamination carrying plate or CCL lamination steel carrier plate.
The PCB/CCL laminating special carrier tray and top cover plate are using high-end steel, and we deeply know that the stable laminating performance of such product can only be ensured by both selecting high-end raw material steel and using the most advanced processing technology. Our bottom carrier tray and top cover plate can fully meet all the pressing or lamination production needs of the existing PCB and CCL industries.
