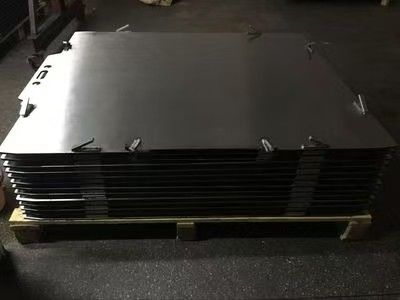

Customizable Carrier Plate And Carrying Cover Plate 1200MPa 0.2mm Tolerance

Customizable 6.0mm-12.0mm Thickness Carrier Plate and Cover Plate with /-0.2mm Thickness Tolerance

Product Description:

The Carrier plate and cover plate product is a crucial component in the PCB/CCL lamination process, specifically designed to provide a sturdy and reliable base plate and top shield for carrying out the lamination process effectively. The product is constructed using high-quality SWEDEN Hardox 450 steel, ensuring durability and longevity even under high-temperature conditions.

With a working temperature of ≤400℃, the Carrier plate and cover plate product is ideal for use in various industrial applications where heat resistance is essential. The use of SWEDEN Hardox 450 steel as the main material guarantees the product's ability to withstand high temperatures without compromising its structural integrity.

One of the key features of the Carrier plate and cover plate product is its excellent surface roughness, with a rating of Ra≤0.75um. This ensures a smooth and uniform surface, which is essential for achieving precise and consistent lamination results. The high-quality surface finish also helps to minimize the risk of imperfections or defects in the final product.

In addition to surface roughness, the product also boasts exceptional parallelism, with a tolerance level of ≤0.07. This high level of parallelism ensures that the base plate and top shield are perfectly aligned, allowing for accurate and uniform lamination throughout the process. The precise parallelism of the Carrier plate and cover plate product contributes to the overall quality and efficiency of the lamination process.

The Carrier plate and cover plate product, known as the PCB/CCL Lamination Carrying Tray ESCT-PCCL-SW, is specifically designed to meet the needs of industrial lamination processes. Its robust construction and high-end steel material make it a reliable and long-lasting solution for carrying out lamination tasks with precision and efficiency.

Whether used as a mounting plate for PCB/CCL lamination equipment or as a protective cover plate for sensitive components, the Carrier plate and cover plate product offers versatility and reliability in various applications. Its durable construction and high-temperature resistance make it a valuable asset in industrial settings where quality lamination results are paramount.

Features:

• Product Name: Carrier plate and cover plate
• Performance Parameters:
  • Mass Lamination
  • Pin Lamination
  • Length
  • Width
  • Size Tolerance
  • Positioning Hole-to-Hole Tolerance
  • Diagonal Deviation
• Thickness: 6.0mm-12.0mm
• Surface Roughness: Ra≤0.75um
• Application: Used in PCB/CCL laminating industries
• Introduction: PCB/CCL Lamination Carrying Tray ESCT-PCCL-SW is made of high-end steel from Sweden.

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Carrier plate and cover plate product:

EastStar's Carrier plate and cover plate (Model: ESCT-PCCL-SW) are versatile components designed for a wide range of industrial and commercial applications. With their high-quality construction and advanced features, they are suitable for various usage scenarios:

1. Bracket and lid unit: The Carrier plate and cover plate can be seamlessly integrated into bracket and lid units for electrical enclosures, control panels, and machinery housings. Their stable thermal expansion coefficient and imported special steel material ensure reliable performance in demanding environments.

2. Docking panel and cover: These plates are ideal for use as docking panels and covers in electronic equipment, telecommunications devices, and automotive components. The precision machining and surface roughness of Ra≤0.75um make them perfect for applications requiring a high level of accuracy.

Manufactured in China, these products from EastStar come with a minimum order quantity of 100pcs and a negotiable price, making them suitable for both small-scale and large-scale projects. Customers can choose from a range of payment terms including T/T, D/P, D/A, Western Union, and MoneyGram for added convenience.

The Carrier plate and cover plate have a thickness tolerance of +/-0.2mm and a thermal conductivity of 300℃≥42 W/(m*k), making them capable of handling thermal challenges with ease. With a thickness range of 6.0mm-12.0mm, these plates offer flexibility in design and application.

Furthermore, the packaging details include options for plywood case or pallet, ensuring safe transportation and storage. The delivery time is approximately 10-15 days, allowing for timely project completion.

Overall, EastStar's Carrier plate and cover plate are known for their higher machining precision, longer service life, and excellent thermal performance, making them a reliable choice for a variety of industrial and commercial settings.

Support and Services:

Our Product Technical Support and Services team is dedicated to providing assistance for the Carrier plate and cover plate product. Whether you have questions about installation, troubleshooting, or maintenance, our experts are here to help.

Packing and Shipping:

Product Packaging:

The Carrier plate and cover plate will be carefully wrapped in protective packaging to prevent any damage during transportation. Each plate will be individually packed to ensure they arrive in perfect condition.

Shipping:

We offer fast and reliable shipping for the Carrier plate and cover plate product. Once your order is placed, the plates will be securely packaged and shipped out promptly. You will receive a tracking number to monitor the delivery status of your package.

FAQ:

Q: What is the brand name of the Carrier plate and cover plate product?

A: The brand name is EastStar.

Q: What is the model number of the Carrier plate and cover plate product?

A: The model number is ESCT-PCCL-SW.

Q: Where is the Carrier plate and cover plate product manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for the Carrier plate and cover plate product?

A: The minimum order quantity is 100pcs.

Q: What are the payment terms accepted for purchasing the Carrier plate and cover plate product?

A: The accepted payment terms are T/T, D/P, D/A, Western Union, and MoneyGram.
