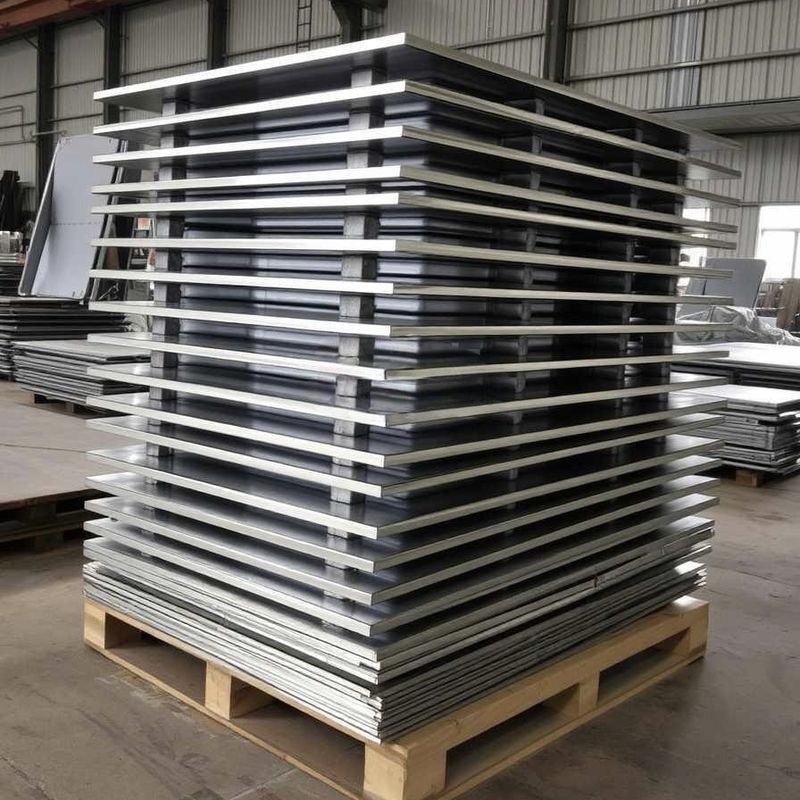

Industrial Grade 1200MPa Carrier Cover Plate PCB CCL Lamination Carrying Tray

Industrial-Grade Carrier Plate for Optimal Performance PCB CCL Lamination Carrying Tray

Product Description:

PCB/CCL Lamination Carrying Tray ESCT-PCCL-GE is made of the top grading steel made in Germany, which can fully meet the higher and stricter requirements for PCB or CCL lamination process.

PCB/CCL Lamination Carrying Tray ESCT-PCCL-GE is used as the bottom loading trays for lamination steel plates and PCB/CCL lamination materials being used in the PCB or CCL vacuum laminator or press.

As a professional manufacturer specializing in the deep processing of laminated steel plates and carrying trays (carrier plates) used in such industries as PCB, CCL and IC carrier boards, EastStar has been using high-end raw materials (made in Japan, Sweden or Germany) and precision machining technology (using the latest heat treatment and grinding techniques), combined with sophisticated automation equipment and strict quality inspection processes.

We can also rename or call PCB/CCL Lamination Carrying Tray ESCT-PCCL-GE as PCB/CCL loading tray, PCB trailer plate, CCL steel carrier tray, PCB lamination carrying plate or CCL lamination steel carrier plate.

The PCB/CCL laminating special carrier tray and top cover plate are using high-end steel-German DILLIDUR-450 grade, and we deeply know that the stable laminating performance of such product can only be ensured by both selecting high-end raw material steel and using the most advanced processing technology. Our bottom carrier tray and top cover plate can fully meet all the pressing or lamination production needs of the existing PCB and CCL industries.

With a working temperature of ≤400℃, the Carrier plate and cover plate product is ideal for use in various industrial applications where heat resistance is essential. The use of SWEDEN Hardox 450 steel as the main material guarantees the product's ability to withstand high temperatures without compromising its structural integrity.

One of the key features of the Carrier plate and cover plate product is its excellent surface roughness, with a rating of Ra≤0.75um. This ensures a smooth and uniform surface, which is essential for achieving precise and consistent lamination results. The high-quality surface finish also helps to minimize the risk of imperfections or defects in the final product.

Features:

Product Name:PCB/CCL Lamination Carrying Tray ESCT-PCCL-GE

1. All PCB/CCL lamination carrier plates use imported special steel from abroad - German DILLIDUR-450 steel grade, which can well ensure more stable thermal expansion coefficient and matching hardness requirements.

2. All PCB/CCL lamination carrier plates by EastStar are featuring smaller dimensional tolerances and higher machining precision.

3. All PCB/CCL lamination carrying trays made by EastStar have a longer service life, which can reach 4-5 years.

4. Conventional sizes (mm) of the carrier tray for PCB/CCL lamination: 1472*1320/1300*800/1420*850/1295*1500/2220*1270/2120*1270/1920*1270/1270*1070/1270*1120/1295*1143.

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Carrier plate and cover plate product:

EastStar's Carrier plate and cover plate (Model: ESCT-PCCL-GE) are versatile components designed for a wide range of industrial and commercial applications. With their high-quality construction and advanced features, they are suitable for various usage scenarios:

Furthermore, the packaging details include options for plywood case or pallet, ensuring safe transportation and storage. The delivery time is approximately 10-15 days, allowing for timely project completion.

Overall, EastStar's Carrier plate and cover plate are known for their higher machining precision, longer service life, and excellent thermal performance, making them a reliable choice for a variety of industrial and commercial settings.

Support and Services:

Our Product Technical Support and Services team is dedicated to providing assistance for the Carrier plate and cover plate product. Whether you have questions about installation, troubleshooting, or maintenance, our experts are here to help.

Packing and Shipping:

Product Packaging:

The Carrier plate and cover plate will be carefully wrapped in protective packaging to prevent any damage during transportation. Each plate will be individually packed to ensure they arrive in perfect condition.

Shipping:

We offer fast and reliable shipping for the Carrier plate and cover plate product. Once your order is placed, the plates will be securely packaged and shipped out promptly. You will receive a tracking number to monitor the delivery status of your package.

FAQ:

Q: What is the brand name of the Carrier plate and cover plate product?

A: The brand name is EastStar.

Q: What is the model number of the Carrier plate and cover plate product?

A: The model number is ESCT-PCCL-GE.

Q: Where is the Carrier plate and cover plate product manufactured?

A: The product is manufactured in China.

Q: What is the minimum order quantity for the Carrier plate and cover plate product?

A: The minimum order quantity is 100pcs.

Q: What are the payment terms accepted for purchasing the Carrier plate and cover plate product?

A: The accepted payment terms are T/T, D/P, D/A, Western Union, and MoneyGram.
