Hardox450 Lamination Loading Trailer Plate
, 12.0mm Lamination Loading Trailer Plate
, Hardox450 Carrying Tray
Mass Lamination Hardox450 Steel Grade Lamination Loading Trailer Plate Carrying Tray
Mass Lamination High-end Swedish Hardox450 Steel Grade PCB/CCL Lamination Loading Trailer Plate Carrying Tray ESCT-PCCL-SW
1.Introduction of Mass Lamination High-end Swedish Hardox450 Steel Grade PCB/CCL Lamination Loading Trailer Plate Carrying Tray ESCT-PCCL-SW

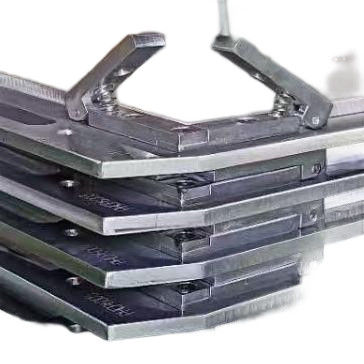

PCB/CCL Lamination Carrying Tray ESCT-PCCL-SW is made of the high end steel made in Sweden. It is featuring higher performance by price ratio. It is working as the bottom loading trays for lamination steel plates and PCB/CCL lamination materials being used in the PCB or CCL vacuum laminator or press.
EastStar is a professional manufacturer specializing in the deep processing of laminated steel plates and carrying trays (carrier plates) used in such industries as PCB, CCL and IC carrier boards. We have been using high-end raw materials (made in Japan, Sweden or Germany) and precision machining technology (using the latest heat treatment and grinding techniques), combined with sophisticated automation equipment and strict quality inspection processes.
2. Performance parameters of Mass Lamination High-end Swedish Hardox450 Steel Grade PCB/CCL Lamination Loading Trailer Plate Carrying Tray ESCT-PCCL-SW
|
performance parameters
|
SWEDEN Hardox 450
|
|
Mass Lamination
|
Pin Lamination
|
|
Thickness
|
6.0mm-12.0mm
|
6.0mm-12.0mm
|
|
Thickness tolerance
|
+/-0.2mm
|
+/-0.2mm
|
|
Length
|
≤3000mm
|
≤3000mm
|
|
Width
|
≤1300mm
|
≤1300mm
|
|
Size tolerance
|
+/-1.0mm
|
+/-1.0mm
|
|
Hardness HV
|
450
|
450
|
|
Warpage degree
|
≤3mm/m
|
≤3mm/m
|
|
Working temperature
|
≤400℃
|
≤400℃
|
|
Parallelism
|
≤0.07
|
≤0.07
|
|
Surface roughness
|
Ra≤0.75um
|
Ra≤0.75um
|
|
Positioning hole-to-hole tolerance
|
--
|
-0/+0.05mm
|
|
Thermal conductivity W/(m*k)
|
300℃≥42
|
300℃≥42
|
|
Diagonal deviation
|
1mm
|
1mm
|
|
Tensile strength
|
≥1200MPa
|
≥1200MPa
|
3. Product features of Mass Lamination High-end Swedish Hardox450 Steel Grade PCB/CCL Lamination Loading Trailer Plate Carrying Tray ESCT-PCCL-SW
1). All PCB/CCL lamination carrier plates use imported special steel from abroad - Swedish Hardox450 steel grade, which can well ensure more stable thermal expansion coefficient and matching hardness requirements.
2). All PCB/CCL lamination carrier plates by EastStar are featuring smaller dimensional tolerances and higher machining precision.
3. All PCB/CCL lamination carrying trays made by EastStar have a longer service life, which can reach 4-5 years.
4). Conventional sizes (mm) of the carrier tray for PCB/CCL lamination: 1472*1320/1300*800/1420*850/1295*1500/2220*1270/2120*1270/1920*1270/1270*1070/1270*1120/1295*1143.
4. Application of Mass Lamination High-end Swedish Hardox450 Steel Grade PCB/CCL Lamination Loading Trailer Plate Carrying Tray ESCT-PCCL-SW
PCB/CCL Lamination Carrying Tray ESCT-PCCL-SW is also well known or renamed as PCB/CCL loading tray, PCB trailer plate, CCL steel carrier tray, PCB lamination carrying plate or CCL lamination steel carrier plate.
The PCB/CCL laminating special carrier tray and top cover plate are using high-end Swedish Hardox450 steel grade, and we deeply know that stable laminating performance can only be ensured by selecting high-end raw material steel and using the most advanced processing technology. Our bottom carrier tray and top cover plate can fully meet all the pressing or lamination production needs of the existing PCB and CCL industries.
