Pinlam PCB Trailer Plate PCB CCL Lamination Carrying Tray And Cover Plate

Pinlam PCB Trailer Plate Long Service Life PCB or CCL Lamination Carrying Tray and Cover Plate

Product Description:

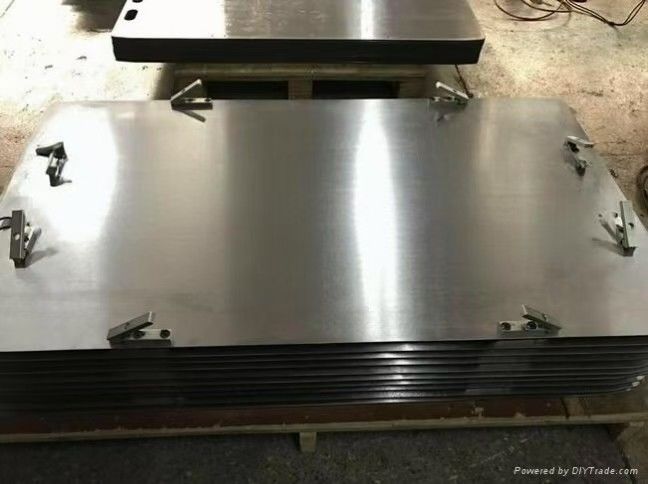

PCB/CCL Lamination Carrying Tray and Cover Plate ESCT-Pinlam is specially used for the pinlam process of PCB or CCL lamination purpose.

The Pinlam carrier plate uses pin pins for positioning, ensuring that each layer is not easily slipped during the pressing process and has high alignment accuracy.

All our bearing plates or carrying trays are made of fully hardened steel plate, which is a heat-resistant and wear-resistant steel plate with high strength, high hardness, and high homogeneity. After years of testing and research, our company specializes in providing steel plates for hot press machines in electronic factories (CCL or PCB).

is made of the top grading steel which can fully meet the higher and stricter requirements for PCB or CCL lamination process.

With a working temperature of ≤400℃, the Carrier plate and cover plate product is ideal for use in various industrial applications where heat resistance is essential. The use of  fully hardened steel as the main material guarantees the product's ability to withstand high temperatures without compromising its structural integrity.

One of the key features of the Carrier plate and cover plate product is its excellent surface roughness, with a rating of Ra≤0.75um. This ensures a smooth and uniform surface, which is essential for achieving precise and consistent lamination results. The high-quality surface finish also helps to minimize the risk of imperfections or defects in the final product.

Features:

1).All PCB/CCL lamination carrier plates are featuring smaller dimensional tolerances and higher machining precision.

2). It has longer service life, which can reach 4-5 years.

3).Conventional sizes (mm) of the carrier tray and cover plate for PCB/CCL lamination: 1472*1320/1300*800/1420*850/1295*1500/2220*1270/2120*1270/1920*1270/1270*1070/1270*1120/1295*1143.

We can also rename or call PCB/CCL Lamination Carrying Tray as PCB/CCL loading tray, PCB trailer plate, CCL steel carrier tray, PCB lamination carrying plate or CCL lamination steel carrier plate.

The PCB/CCL laminating special carrier tray and top cover plate are using high-end steel, and we deeply know that the stable laminating performance of such product can only be ensured by both selecting high-end raw material steel and using the most advanced processing technology. Our bottom carrier tray and top cover plate can fully meet all the pressing or lamination production needs of the existing PCB and CCL industries.

Technical parameters:

Applications:

Product Application Occasions and Scenarios for the Carrier plate and cover plate product:

EastStar's Carrier plate and cover plate (Model: ESCT-Pinlam) are versatile components designed for a wide range of industrial and commercial applications. With their high-quality construction and advanced features, they are suitable for various usage scenarios:

Furthermore, the packaging details include options for plywood case or pallet, ensuring safe transportation and storage. The delivery time is approximately 10-15 days, allowing for timely project completion.

Overall, EastStar's Carrier plate and cover plate are known for their higher machining precision, longer service life, and excellent thermal performance, making them a reliable choice for a variety of industrial and commercial settings.
